When it comes to towing, one of the easiest things to overlook is the height of your trailer hitch.
You can have the right truck, the right trailer, the right ball size, and plenty of towing capacity—but if your hitch height is wrong, your trailer may not sit level.
An improperly adjusted hitch can affect handling, braking, tire wear, and the overall towing experience.
The good news? Finding the right hitch height is relatively simple.
Here’s how to measure it correctly.
What Is Trailer Hitch Height?
Trailer hitch height is the distance from the ground to the top of the hitch receiver opening on your tow vehicle.
Your trailer has a corresponding measurement: the distance from the ground to the bottom of the coupler when the trailer is sitting level.
The difference between these two measurements determines how much your hitch needs to drop or rise.
The goal is simple:
Get your trailer sitting as close to level as possible when it is connected to your tow vehicle.
Depending on your truck, trailer, suspension, and load, you may need a drop hitch or a rise hitch to accomplish this.
Step 1: Park Your Trailer on Level Ground
Start with your trailer parked on a relatively flat surface.
If possible, use a driveway, garage, parking lot, or other hard surface that gives you an accurate measurement.
The trailer should be loaded the way you normally tow it.
This is important because the height of your trailer can change depending on how much weight you're carrying.
A boat trailer, for example, may have a different setup than a utility trailer or RV.
Step 2: Make Sure the Trailer Is Level
Use the trailer's tongue jack to adjust the trailer until it is level from front to back.
A small bubble level can help.
Place the level on the trailer frame or another surface that accurately represents the trailer's orientation.

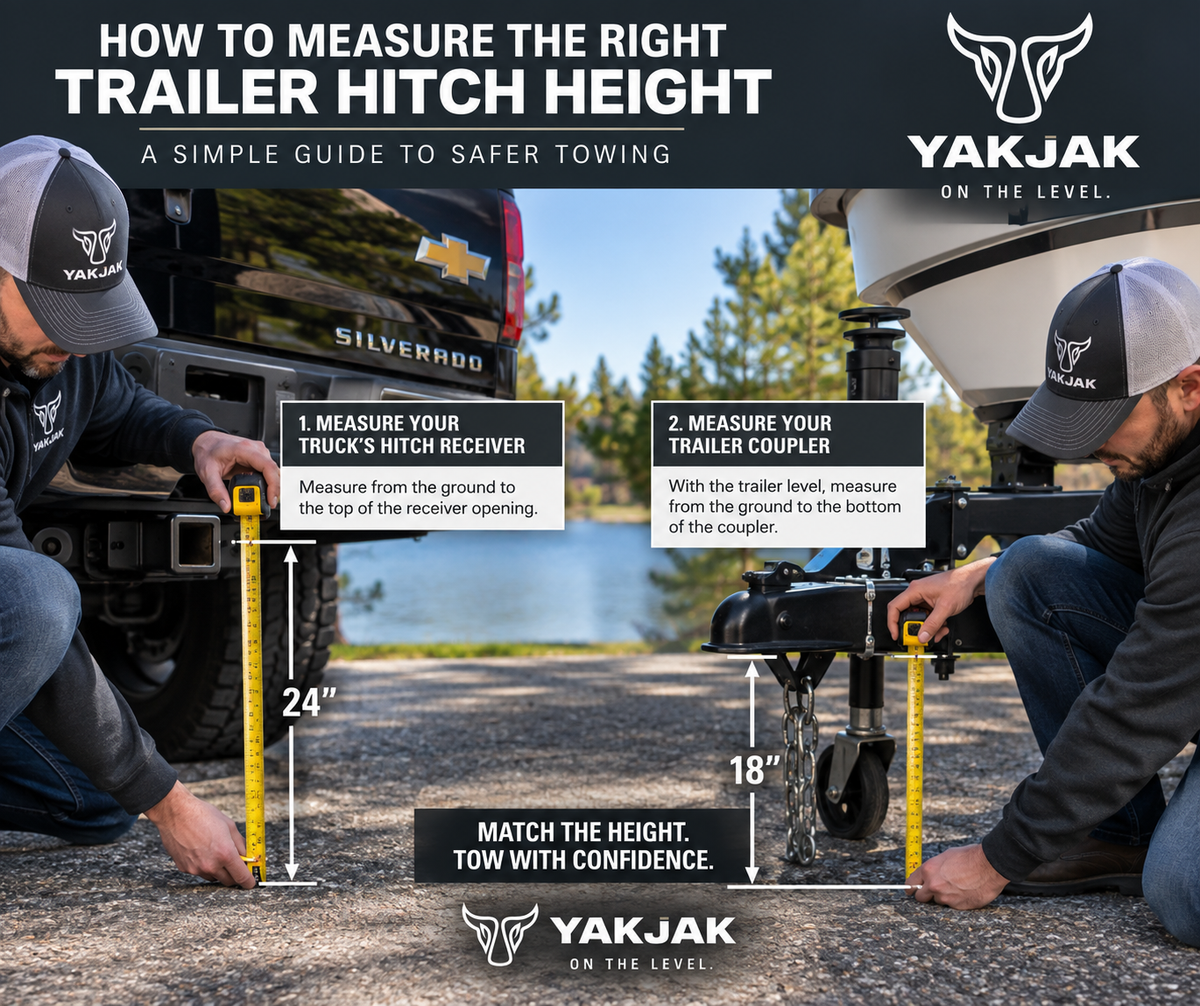

Once the trailer is level, measure from the ground to the bottom of the trailer coupler.
Write that number down.
For example:
Trailer coupler height: 18 inches
Step 3: Measure Your Truck's Hitch Receiver
Now move to your tow vehicle.
Measure from the ground to the top of the receiver opening.
For example:
Truck receiver height: 24 inches
Now you have two numbers:
- Truck receiver: 24 inches
- Trailer coupler: 18 inches
In this example, the truck's receiver is 6 inches higher than the trailer coupler.
That means you'll generally need approximately a 6-inch drop to bring the trailer into the proper position.
Don't Forget About the Hitch Ball
There is one important detail that can make these measurements confusing.
Your trailer doesn't connect directly to the receiver.
It connects to the hitch ball.
The height of the ball above the receiver changes depending on the hitch you're using.
That's why simply measuring the receiver and buying a hitch with the same advertised drop isn't always enough.
The actual geometry of the hitch matters.
This is one reason adjustable ball mounts can be so useful.
Instead of being locked into one fixed height, an adjustable hitch allows you to position the ball where you need it.
What Happens If Your Trailer Isn't Level?
A trailer that is significantly nose-high or nose-low can create problems.
Trailer Too Nose-High
If the front of the trailer is significantly higher than the rear, you may experience:
- Uneven weight distribution
- Reduced stability
- Increased wear on the rear trailer axle
- Poor handling
- Changes in braking behavior
Trailer Too Nose-Low
If the front of the trailer sits significantly lower than the rear, you can also create handling and weight-distribution issues.
You may also increase the chance of the trailer or hitch components contacting the ground when going through driveways, ramps, or uneven roads.
The goal isn't necessarily to achieve perfect precision down to the last fraction of an inch.
The goal is to get your trailer properly positioned and as level as practical for your particular setup.
Why Adjustable Hitches Make Towing Easier
One of the biggest advantages of an adjustable trailer hitch is flexibility.
If you tow multiple trailers, switch vehicles, or have different towing setups, a fixed hitch can quickly become limiting.
An adjustable hitch lets you change the ball position to accommodate different trailer heights.
For example, the same tow vehicle might be used to pull:
- A boat trailer
- A travel trailer
- A utility trailer
- A cargo trailer
- A landscaping trailer
Each trailer can have a different coupler height.
Instead of buying a different fixed hitch for every application, an adjustable hitch gives you more flexibility in one setup.
Don't Forget Your Trailer Load
Here's another important consideration:
Measure your setup the way you actually tow it.
If your trailer is normally loaded with equipment, camping gear, water, coolers, batteries, or other cargo, take that into account.
The additional weight can change the ride height of both the tow vehicle and trailer.
That's especially important with RVs and heavier trailers.
Your truck may sit noticeably lower once the trailer is connected, particularly if you have a substantial tongue weight.
A Quick Trailer Hitch Height Formula
Here's a simple way to think about it:
Trailer coupler height − receiver height = approximate hitch drop/rise needed
For example:
Trailer coupler: 20"
Truck receiver: 26"
20" − 26" = -6"
So you're looking for approximately a 6-inch drop.
If the trailer coupler is higher than the receiver, you'll generally need a rise instead.
Always verify the actual hitch geometry and manufacturer specifications before towing.
Before You Hit the Road
Once you have the hitch adjusted, take a few minutes to check the entire setup.
Make sure:
- The trailer is sitting properly
- The hitch pin is installed and secured
- The coupler is fully locked onto the ball
- Safety chains are properly attached
- Trailer wiring is connected
- Trailer lights are working
- The hitch ball is the correct size and rating
- The hitch and ball mount are rated for your trailer
- The trailer tires are properly inflated
- The load is properly distributed
A few minutes of preparation can make a big difference once you're on the road.
Tow Better. Tow Level. Tow With Confidence.
Getting the right trailer hitch height isn't complicated, but it is an important part of setting up your towing system correctly.
Measure your trailer. Measure your vehicle. Account for your load. Then choose a hitch that gives you the adjustment you need.
